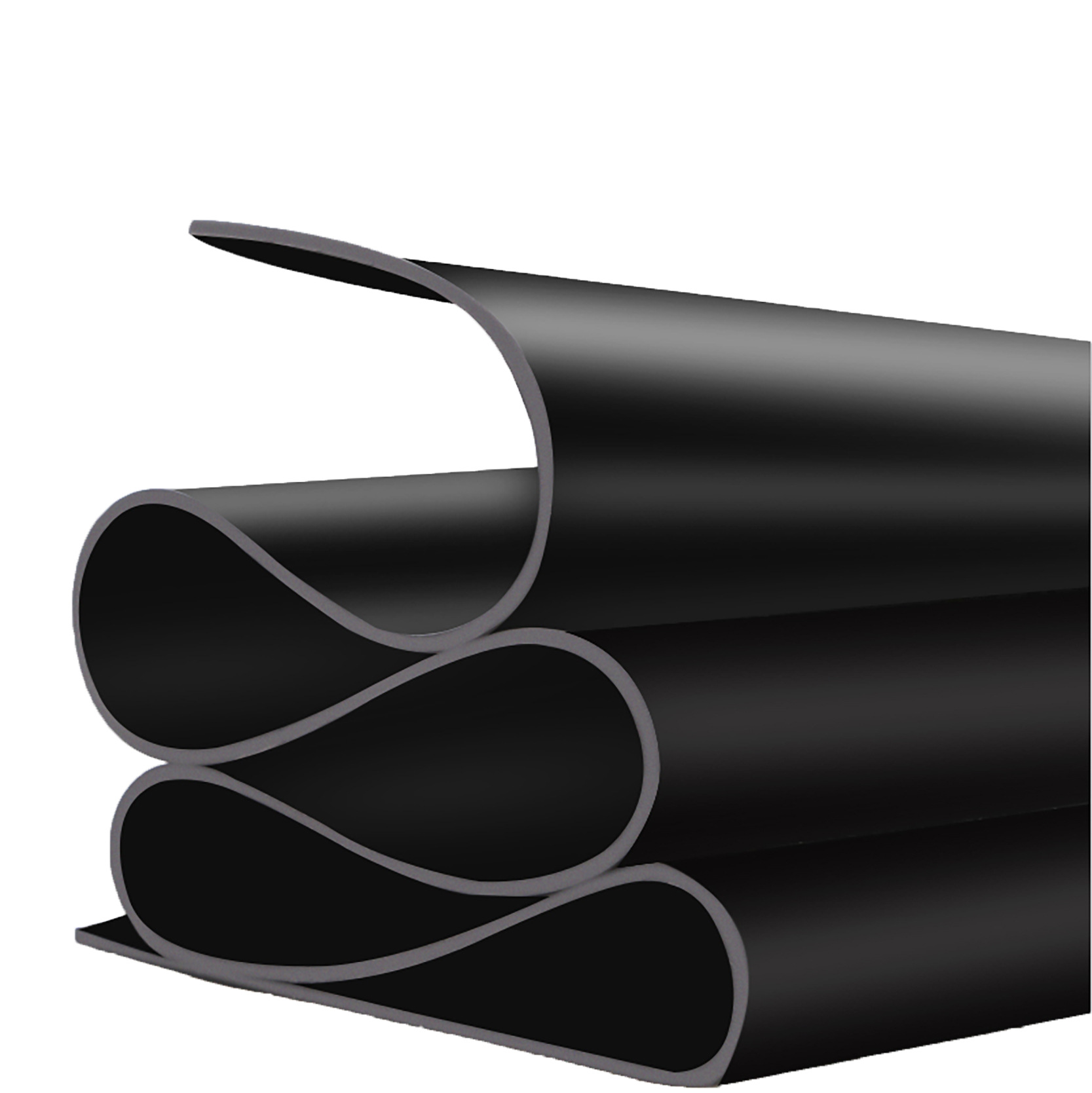

NBR Rubber Sheet / Nitrile Rubber Sheet
NBR rubber sheet, also known as nitrile rubber sheet, is a high-performance industrial rubber material famous for outstanding oil resistance. It keeps stable performance in oily media, with good sealing performance and anti-expansion property.
Main Features
Excellent oil resistance
Good acid and alkali resistance
Superior abrasion resistance
Wide working temperature range: -10℃ ~ 100℃
Custom hardness & density available
Available Size Range
| Thickness | Width | Length per roll |
|---|
| 1 - 100 mm | ≤ 3 m | ≤ 100 m/roll |
Technical Parameters
| Density(g/cm³) | Hardness(Shore A) | Tensile Strength(Mpa) | Elongation(%) | Temperature(℃) |
|---|
| 1.6 | 65±5 | ≥3 | ≥200 | -10 ~ 100 |
| 1.5 | 65±5 | ≥4 | ≥250 | -10 ~ 100 |
| 1.4 | 65±5 | ≥5 | ≥300 | -10 ~ 100 |
| 1.3 | 55±5 | ≥7 | ≥350 | -10 ~ 100 |
Applications
NBR rubber sheet is widely used to punch various oil-resistant seals, sealing rings, gaskets and protective pads. It can be laid on workbenches, floors and work sites contacting grease. Common industries include petroleum chemical, automobile manufacturing, electronic product workshops and mechanical engineering.
We support customized sizes, hardness and cutting service. Contact us for detailed specifications and quotation.
